Trane ComfortLink II Controls in Alhambra

What does ComfortLink II actually do?

ComfortLink II is Trane's communicating platform, the language a variable-speed system uses to coordinate the thermostat, indoor air handler, and outdoor unit. The XL850 and XL824 color touchscreens are the brains: they unlock the modulation of a Climatuff inverter in an XV18 or XV20i, run staging logic, and, crucially, surface plain-language fault alerts instead of cryptic codes. Without the right communicating control, a premium variable-speed system cannot do the one thing you bought it for.

Which Trane control do I have, and what does it run?

Trane's thermostat range splits cleanly into communicating controls that talk to a variable-speed system and simpler controls that switch a single-stage one. Knowing which you have decides what is possible:

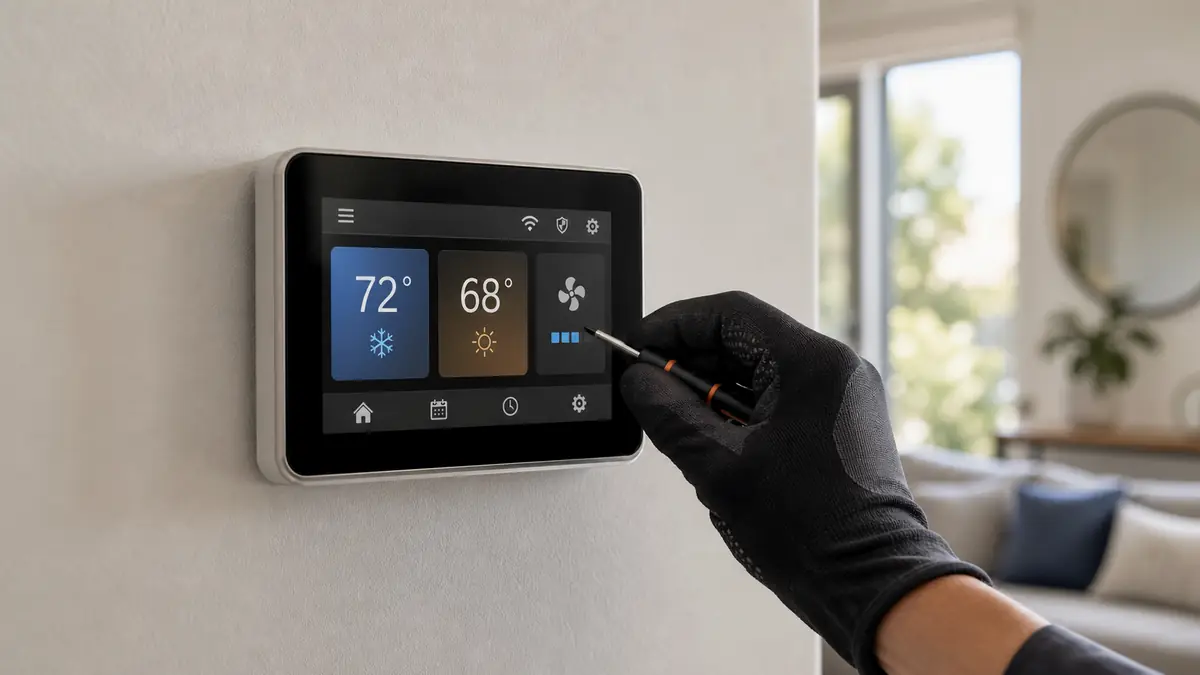

• ComfortLink II XL850 (TCONT850). The top control, a color touchscreen with a built-in Nexia/Z-Wave bridge for home automation. Runs the full modulation and diagnostics of an XV18 or XV20i.
• ComfortLink II XL824 (TCONT824). The same communicating platform and color touchscreen with Wi-Fi and Nexia, without the built-in Z-Wave hub. Pairs with the same variable-speed systems.
• XL624. A programmable non-communicating control, a step below; it does not unlock variable-speed staging.
• XR724 / XR402. Wi-Fi and basic programmable thermostats for single-stage XR systems, where a communicating control would add cost with no benefit.

If your thermostat is a Trane color touchscreen wired with four conductors to a variable-speed XV condenser, it is a ComfortLink II XL824 or XL850. A two- or four-wire connection to a single-stage XR means a standard control, and that is the correct match for that equipment.

How do you fix a communication fault?

We treat the wiring before the board, because the cheapest fix is the most common one. The ComfortLink II bus is a 4-wire connection between the thermostat, indoor unit, and outdoor unit; a loose terminal, a corroded splice in an attic junction, or a wire nicked during another trade's work will drop the link and trigger the "loss of communication" alert. We meter the bus end to end and reseat connections first. Only when the wiring is proven clean do we test the communicating boards, which can run several hundred dollars or more.

Why does matching the control matter so much?

This is where homeowners lose money. A variable-speed XV20i with a generic smart thermostat is forced to run single-speed, surrendering the quiet, even comfort and efficiency that justify its price. Conversely, putting an XL850 on a single-stage XR adds cost without benefit, since the XR cannot modulate. We match the control to the system: communicating XL824 or XL850 for XV, a sensible Wi-Fi or programmable control for XR. In Alhambra's open 1920s floor plans, the variable-speed-plus-ComfortLink pairing is what tames the hot-then-cold swings.

Why do old Alhambra homes break the comm bus?

The 4-wire ComfortLink II bus is more sensitive than old-style thermostat wiring, and the city's housing stock works against it. In a 1920s home, the run from the wall control to a furnace in a hall closet and out to the condenser often passes through a hot, dusty attic, where heat cycling loosens terminals and rodents chew low-voltage wire over the years. Splices added during a past remodel, or wire nicked while another trade worked in the attic, drop the link and trigger the "loss of communication" alert. When a system was retrofitted into an older home, the thermostat wire is sometimes the original two-conductor cable, too few wires for the communicating bus, which forces a proper rewire rather than a board swap. We meter the bus end to end before condemning any board.

Should I keep ComfortLink II or switch to a third-party thermostat?

For a variable-speed XV system, keep it; for a single-stage XR, a smart thermostat is fine. The trade-off is not about features, it is about whether your equipment can modulate.

Can ComfortLink alerts speed up a repair?

Yes, and we use them. Because the XL824 and XL850 report faults in plain language and log history, an alert like an outdoor-unit communication error or an inverter warning points us straight at the failing subsystem instead of a blind teardown. On an Alhambra service call, that often means we arrive already knowing whether we are chasing a wiring fault, a board, or the Climatuff inverter itself, which shortens the visit and the bill. See the broader fault-code page for how these tie to the rest of the system.
