Trane AC Installation in Alhambra

How do you size a new AC for an Alhambra home?

It begins with a Manual J load calculation that reads the home's true envelope: plaster-and-lath walls, single or upgraded windows, attic insulation, orientation, and the canopy shade so common in Emery Park and Alhambra Vista. Square-foot rules routinely push these houses a full ton over what they need. A condenser that is too large slams to the thermostat setpoint, cuts off before it has pulled out the humidity, and short-cycles its way to an early grave. Size it correctly and the cycles stretch longer and quieter, and they genuinely dehumidify.

How does a Trane install actually go in Alhambra?

A clean installation is mostly preparation, not the swap itself.

1. Load calculation. A Manual J reads plaster-and-lath walls, window glazing, attic insulation, orientation, and the tree canopy common in Emery Park and Alhambra Vista, returning the real tonnage instead of a square-foot guess.
2. Equipment match. We size the condenser, evaporator coil, and metering device as a matched Trane set so the SEER2 rating actually holds; a mismatched coil quietly throws away efficiency.
3. Permit and prep. We pull the Alhambra mechanical permit, protect the floors, and set the new pad or wall bracket.
4. Line set and electrical. We braze under nitrogen, pull a deep vacuum to 500 microns to remove moisture, and confirm the disconnect and breaker sizing.
5. Charge and commissioning. We weigh in the factory charge, verify superheat and subcooling, and set airflow to the design CFM.
6. HERS verification and registration. An independent rater field-verifies charge, airflow, and any duct sealing, and we register the Trane warranty on your behalf.

Which Trane system fits my budget and home?

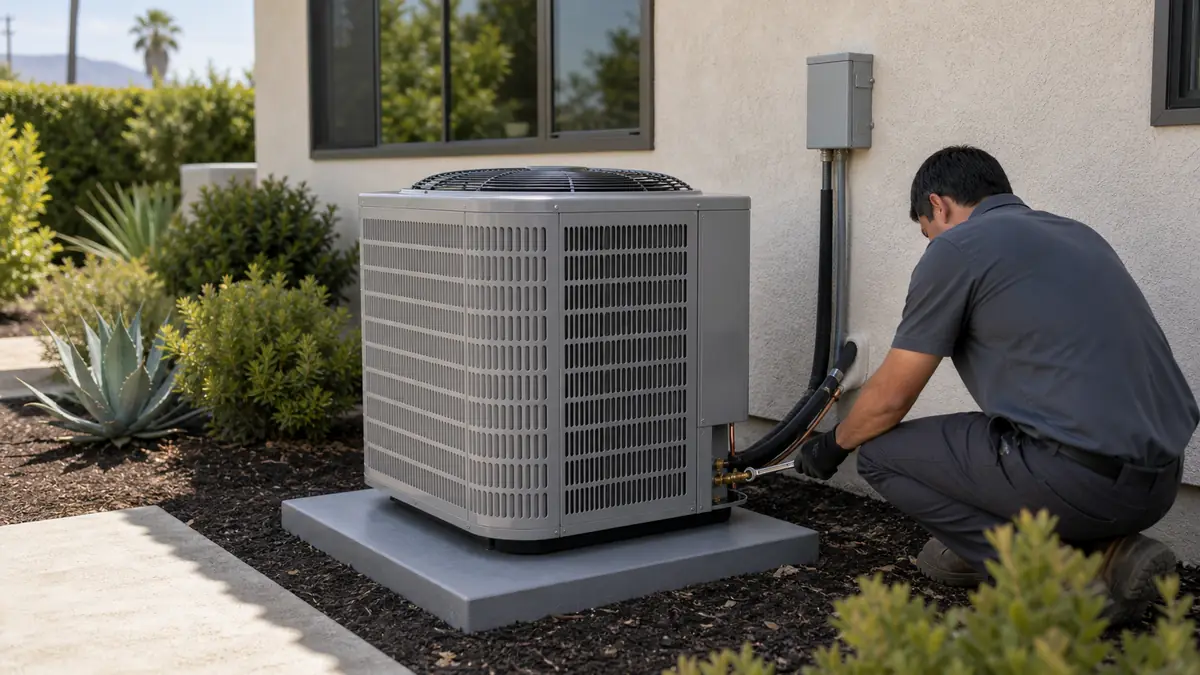

The XR-series single-stage condensers (XR13 through XR17) are the durable, affordable workhorses that suit most Alhambra replacements. Step up to the two-stage XL or the variable-speed XV18 and XV20i with the Climatuff inverter when you want tighter temperature control and quieter operation, paired with an XL824 or XL850 ComfortLink II thermostat. We walk you through the trade-offs on the XR-series page and the ComfortLink controls page rather than steering you to the priciest box.

Why is ductless often the smarter retrofit here?

Alhambra's wall-to-wall 1920s and 1930s housing rarely has the chases a central system needs, and forcing ducts into shallow attics over plaster ceilings is invasive and leaky. A ductless or compact ducted retrofit puts conditioned air where people actually are, zones each room to its load, and skips the demolition. For a Tudor or storybook cottage near Almansor Park, that frequently means a better result for less money than a full ducted install. The trade-offs are laid out in the sizing guide.

What does Title-24 require for a new install?

Alhambra falls inside Title-24 Climate Zone 9. Installing or replacing a split system normally calls for refrigerant-charge and airflow verification, and touching the ducts usually brings duct sealing that an independent rater field-verifies under HERS. We file the permit, schedule the HERS test, and paper the work so the inspection clears on the first try. The cycles change over time, so verify the exact triggers for your address before the job begins. The SEER2 and rebates guide lays out the efficiency floors.

What does a new AC install cost in Alhambra, and why?

The headline range is wide because three things move it: the equipment tier, the duct condition, and the code work. A like-for-like single-stage XR16 swap on a Granada Park slab with sound ducts sits at the low end of $5,000 to $12,000, since the labor is a straightforward changeout. Step up to a variable-speed XV18 or XV20i and the equipment cost rises toward the top of that band for the inverter compressor and the required ComfortLink II XL824 or XL850 control. Old or missing ductwork adds $1,900 to $6,000. A ductless retrofit prices per zone, $3,500 to $8,000 for the first head, because much of the cost is the line set and the condenser, not the indoor unit. Title-24 charge, airflow, and HERS verification add a fixed line item we disclose up front.

Are rebates available on a new Alhambra system?

On a heat-pump conversion, LADWP, SCE, and TECH Clean California have each carried per-system and per-ton incentives, but the funding arrives in rounds and several were posted as fully reserved or waitlisted by early 2026. The federal 25C tax credit was repealed effective December 31, 2025, which leaves nothing for a 2026 install to claim. We will not anchor a quote to a rebate that may already be closed; confirm both the amount and the standing before you lean on either. The links and particulars sit in the rebates guide.
