The quick read: Alhambra Trane HVAC decodes Trane fault codes across Alhambra, CA, including the Bean Tract and the 91801 ZIP. To have a furnace LED flash count, a no-code XR diagnosis, or an XL824 or XL850 alert read and the named part tested, call (213) 566-7218 or book online.
Quick numbers
- Furnace faults: control-board LED flash count (2 through 9).
- Non-communicating XR/XL AC: no numeric code, electrical diagnosis.
- XV systems: plain-language alerts on XL824/XL850 and the Trane Home app.
- Communication-fault wiring repair: typical $120-$350.
- Communicating or inverter board: $400-$2,000.
- Service area: Alhambra, Bean Tract, Midwick, Granada Park (91801, 91803).
- Independent, all brands.
How does a Trane report a fault?

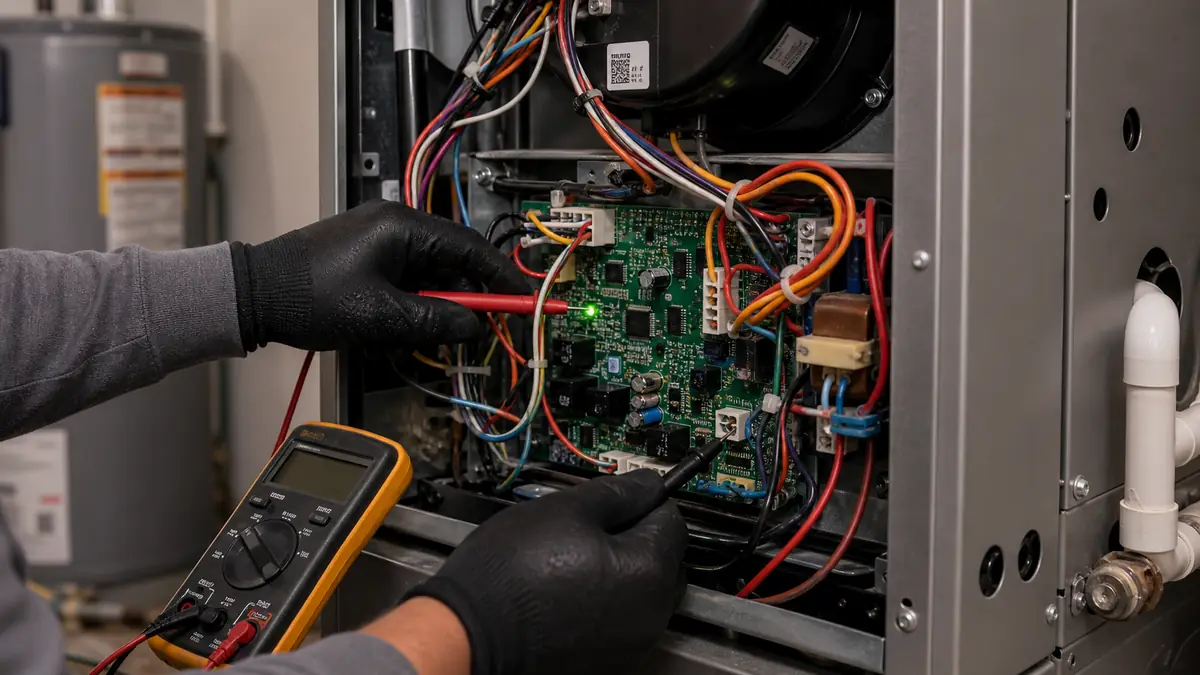

Trane uses three different methods depending on the equipment, which is why "what does my code mean" has no single answer. Gas furnaces flash a status LED on the integrated furnace control; you count the flashes against the legend. Single-stage XR and most XL air conditioners are non-communicating and throw no numeric code at all, so the diagnosis is electrical, capacitor, contactor, pressures. Variable-speed XV systems with ComfortLink II display plain-language alerts on the XL824 or XL850 touchscreen, which is the most informative of the three.
| Flashes | Meaning | Likely first check |
|---|---|---|
| Continuous on | Control board failed | Replace board |
| 2 | System lockout (ignition retries exceeded) | Igniter, flame sensor, gas supply |
| 3 | Vent / pressure switch error | Inducer, blocked flue, switch |
| 4 | Open high-temperature limit | Dirty filter, restricted duct, low airflow |
| 5 | Flame sensed when none expected | Gas valve leak-by or board |
| 6 | Reversed polarity or poor grounding | 115V wiring polarity |
| 7 | Gas valve circuit error | Gas valve and wiring |
| 8 | Low flame-sense signal | Clean or replace flame sensor |
| 9 | Igniter circuit problem | Hot-surface igniter |
What do ComfortLink II alerts tell us?
On an XV18 or XV20i, the XL850 or XL824 reports faults in plain English and logs them with timestamps. An alert like "loss of communication with outdoor unit" points us at the 4-wire ComfortLink II bus; an inverter or outdoor-unit alert points at the variable-speed board or the Climatuff compressor circuit. Because the control already narrows the failing subsystem, we often arrive at an Alhambra call knowing whether we are chasing wiring, a board, or the inverter, which shortens the diagnosis. Details are on the ComfortLink controls page.
What about the AC with no code at all?
Most Alhambra AC failures happen on non-communicating XR and XL units that never display a code, so the absence of one is not a mystery, it is normal. Here the diagnosis is hands-on: capacitor microfarads against spec, contactor condition, compressor and fan amp draw, and refrigerant pressures with superheat and subcooling. In our heat, a no-code "it just hums" complaint is almost always a baked capacitor. The full electrical workup is on the AC repair page, and the sounds these faults make are on the noise page.
What does each ComfortLink II alert point to?
Because the XL824 and XL850 narrate faults in plain English, they save real diagnostic time on a variable-speed XV18 or XV20i. The alert text maps to a subsystem, which tells us what to bring and where to start before we reach the door. The table below pairs the common alert themes with the component behind them and a rough cost lane, so an Alhambra homeowner reading their own thermostat knows whether to expect a quick wiring fix or a board.
| Alert theme | Likely cause / component | Cost lane |
|---|---|---|
| Loss of communication with outdoor unit | 4-wire bus: loose terminal, corroded splice, chewed wire | $120-$350 |
| Communication fault, board not responding | Failed communicating control board | $400-$2,000 |
| Inverter or outdoor-unit fault | Variable-speed inverter board or Climatuff circuit | $400-$2,000 |
| Low line voltage / power alert | Disconnect, breaker, or incoming supply | $120-$450 |
| Indoor airflow / blower alert | ECM blower module or motor | $450-$2,300 |
Which codes are safe to handle and which need a pro?
A short list is genuinely homeowner-safe. Replacing a clogged filter that caused a 4-flash high-limit trip, cycling the breaker once to clear a single furnace lockout, and confirming the thermostat has power are all fair game. Stop there. Anything touching gas, flame, or the 24-volt and line-voltage circuits, the 2-flash ignition lockout, 7-flash gas-valve circuit, 9-flash igniter fault, 5-flash flame-when-none-expected, or the 3-flash pressure-switch and any rollout indication, is a pro call, because a misread can leave gas unburned or a cracked heat exchanger venting where you breathe. On the AC side, a humming no-start that keeps tripping is a capacitor or contactor under load, not a reset job. When a code returns after one clear, that is the signal to book the diagnosis rather than reset again.
Should I reset a code or call?
A one-time furnace lockout can be cleared by cycling power, and a high-limit trip from a dirty filter clears once you replace the filter. But a code is a symptom. If it returns, the igniter, pressure switch, flame sensor, or board behind it still needs to be diagnosed and fixed. Repeatedly resetting a furnace that keeps locking out, or running an AC that hums and trips, risks turning a cheap repair into compressor or board damage. When a code recurs, that is the call to make.
Common questions
Where does my Trane show an error code?
It depends on the system. Trane furnaces flash a status LED on the control board; you count the flashes. Non-communicating XR and XL air conditioners give no numeric code, so they are diagnosed electrically. Communicating XV systems display plain-language alerts on the XL824 or XL850 touchscreen and in the Trane Home app.
My furnace flashes four times. What is wrong?
Four flashes is an open high-temperature limit, which usually means the furnace overheated from low airflow. The most common cause is a clogged filter or, in Alhambra's old homes, a restricted retrofit duct. Replace the filter and check the blower; if it recurs, the airflow path needs attention.
What does 'loss of communication' mean on my XL850?
That alert is about the ComfortLink II 4-wire bus between the thermostat and the indoor and outdoor units. A loose terminal, corroded splice, chewed wire, or failed communicating board breaks the link. We check the wiring first because reconnecting it is far cheaper than replacing a board.
Can I clear a Trane code myself?
You can reset a furnace lockout by cycling power, and you can replace a dirty filter that caused a high-limit trip. But a code is a symptom, not a cure; if it returns, the underlying fault, an igniter, pressure switch, sensor, or board, still needs diagnosis. Resetting repeatedly without fixing the cause risks bigger damage.
