Trane Heat Pump Repair in Alhambra
The quick read: Alhambra Trane HVAC repairs Trane heat pumps across Alhambra, CA and the 91801 ZIP, diagnosing reversing-valve, defrost-board, and Climatuff inverter faults on XR and XV20i (4TWV0) systems plus ductless heads. Call (213) 566-7218 or book online for same-week service; a stuck reversing valve or solenoid typically runs $300 to $1,200 once we confirm the fault.
Quick numbers
- Service area: Alhambra plus Bean Tract, Midwick, Alhambra Vista (91801, 91803).
- Reversing-valve or solenoid repair: typical $300-$1,200.
- Defrost board or sensor: $250-$700; inverter/control board $400-$2,000.
- Climatuff inverter compressor: $1,200-$3,500 (lower if under warranty).
- Diagnostic visit $89-$200, often credited toward an approved repair.
- Mild Zone 9 winters: standard heat pumps heat efficiently here, no cold-climate kit needed.
- Independent; in-warranty Trane parts referred to the installing dealer first.
What goes wrong with Alhambra heat pumps?
A heat pump is an air conditioner that can run in reverse, so it shares every AC failure mode plus a few of its own. The reversing valve and its solenoid switch the refrigerant flow between heating and cooling; the defrost board and coil sensor manage the winter defrost cycle; and on variable-speed XV20i units the inverter and ComfortLink II board control the Climatuff compressor. Capacitors and contactors still fail first in our heat, but heating-season complaints usually trace to the valve or defrost logic.
| Symptom | Likely cause / first check | Cost lane |
|---|---|---|
| Cools fine, blows cold on heat mode | Stuck reversing valve or failed solenoid coil | $300-$1,200 |
| Outdoor unit iced, defrost never ends | Failed defrost board or coil temperature sensor | $250-$700 |
| Variable-speed unit runs single-speed | Inverter or ComfortLink II board fault, or comm wiring | $400-$2,000 |
| Weak heat and cool, long run times | Low refrigerant leak; leak search and recharge | $225-$1,500 |
| Outdoor unit silent, hums, will not start | Failed dual-run capacitor or contactor | $150-$450 |
| Heats weakly, aux/emergency heat runs often | Low charge, failing compressor, or sensor fault | $225-$3,500 |
| "Loss of communication" on XL824/XL850 | 4-wire ComfortLink II bus or communicating board | $400-$2,000 |
How does a heat pump diagnosis actually go?
A heat pump is an air conditioner that can run in reverse, so we work both modes in a set order.
- Mode test. We run cooling and heating, because Alhambra's mild winters let a stuck reversing valve hide all summer until the first cool morning.
- Electrical path. Capacitor microfarads, contactor condition, and compressor and fan amp draw, since the capacitor and contactor still fail first in our heat.

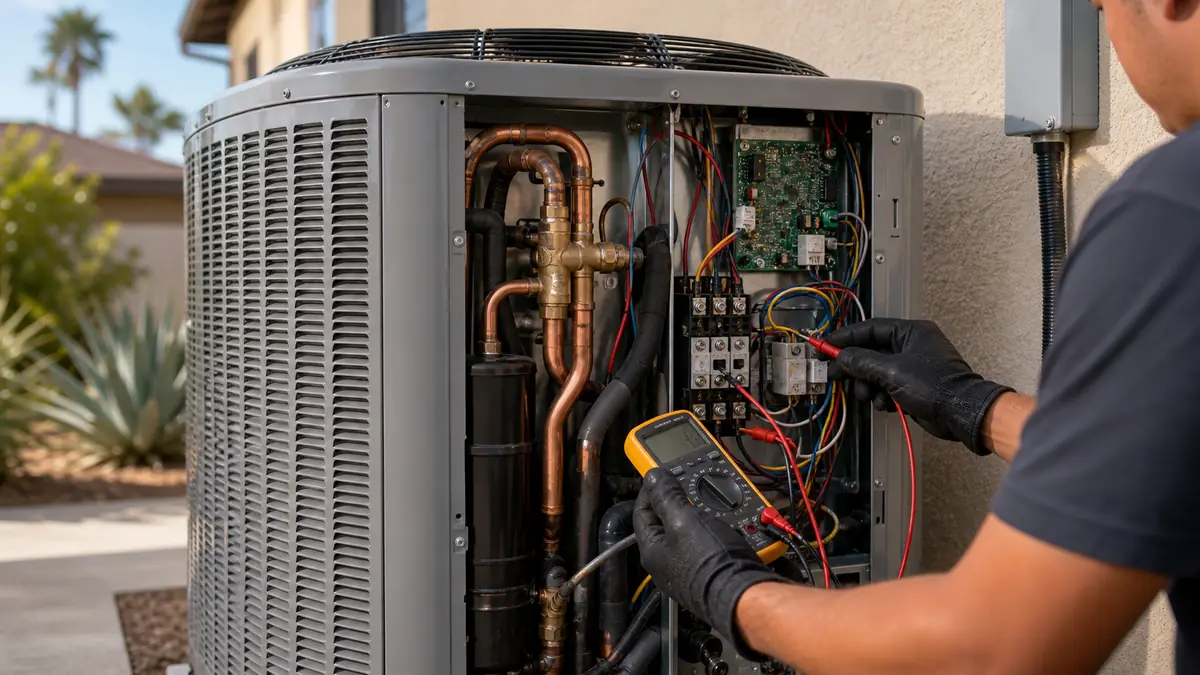

- Reversing valve. We energize the solenoid coil and read suction and discharge temperatures on both ports to confirm the refrigerant actually changed direction.
- Defrost logic. We check the defrost board timing and the coil temperature sensor resistance rather than swapping the board on a guess.
- Refrigerant and controls. Superheat and subcooling flag a leak; on a variable-speed XV20i we read the ComfortLink II alert to separate a wiring fault from a board or the Climatuff inverter.
Which Trane heat pumps do you repair?
We service the full residential range. The single-stage XR-series heat pumps (model strings often starting 4TWR) are non-communicating workhorses common on Alhambra gas-to-electric swaps; their faults are diagnosed electrically at the unit. The variable-speed XV18 (4TWV8) and XV20i (4TWV0) add the Climatuff inverter and a communicating ComfortLink II XL824 or XL850 control that surfaces plain-language alerts. We also repair the ductless heat-pump heads many 1920s homes use for year-round comfort without ductwork. Across all of them the usual suspects are the reversing valve, the defrost board, the inverter or communicating board, and the same capacitors and contactors that fail on an AC. Our heat pump models page breaks down the tiers.
What does heat pump repair cost in Alhambra, and why?
The band tracks the part. A failed solenoid coil is a modest fix; a full reversing-valve body must be unbrazed, replaced, and recharged, which is why the lane spans $300 to $1,200. A defrost board or coil sensor runs $250 to $700. The Climatuff inverter compressor on a variable-speed XV20i is the costliest single part at $1,200 to $3,500, though it is far lower if the unit is still inside its 10-year parts warranty and you owe only labor. Communicating and inverter boards reach $400 to $2,000 because the board alone is several hundred dollars. The $89 to $200 diagnostic is often credited toward an approved repair.
Why do defrost cycles matter in a warm climate?
Even in Zone 9, a humid 40 F morning can frost a heat pump's outdoor coil, and the defrost cycle briefly reverses to melt it; the steam you see is normal. Trouble appears when the defrost board's timer or the coil sensor fails, so the unit either ices solid or wastes energy defrosting constantly. We read the board's logic and sensor resistance rather than swapping parts on a guess, which keeps a winter no-heat call from becoming an unnecessary board replacement.
Should I repair or convert to a heat pump?
If you already run a Trane heat pump, most faults are economical repairs well under the cost of replacement. If you heat with an old gas furnace and your AC is also failing, a heat pump conversion can replace both with one electric system; Alhambra's mild winters make standard models a strong fit. Conversions may qualify for utility rebates, though those run in funding phases. Weigh it with the repair-or-replace guide and the rebates guide.
Is my heat pump still under warranty?
Trane's 10-year parts warranty covers most residential heat pumps registered within 60 days of install. A reversing valve or compressor on a unit under 10 years old may be a covered part through the installing dealer; you would still owe diagnostic and labor charges. We handle that labor, all out-of-warranty repairs, and older systems other shops decline. We tell you which lane applies before any work begins.
Common questions
My Trane heat pump cools fine but blows cold air on heat mode. Why?
That points to a stuck reversing valve or its solenoid, which is what switches the system between heating and cooling. Because Alhambra winters are mild, a stuck valve can go unnoticed all summer and only surface on the first cool December morning. We test the solenoid coil and valve travel directly.
Why does my outdoor unit steam in winter?
A heat pump periodically reverses into a defrost cycle to melt frost off the outdoor coil, and the visible steam is normal. A problem shows up when defrost runs too often or never ends, which usually means a failed defrost board, sensor, or low charge. We confirm the board's logic before replacing parts.
Is a heat pump worth it in Alhambra's mild climate?
Yes. Zone 9 winters rarely drop near freezing, so a standard Trane heat pump heats efficiently here without cold-climate hardware, and it doubles as your air conditioner. For a gas-to-electric conversion it can also open the door to utility rebates, which you should verify for current status.
Can you repair both ducted and ductless heat pumps?
Yes. We service ducted Trane heat pumps like the XR and XV20i (4TWV0) and the ductless heads many 1920s Alhambra homes use for heating and cooling without ductwork. Diagnosis differs, but reversing valves, defrost logic, and inverter boards are the usual suspects on both.
My heat pump runs constantly but the house is not warm. Why?
Long heating run times usually point to a low refrigerant charge, a partly stuck reversing valve, or a failing compressor, so the unit leans on backup heat. We read superheat and subcooling and check the valve travel before condemning a part. Running on emergency or auxiliary heat for long stretches also spikes the electric bill, so it is worth diagnosing promptly.
Should I be worried about my outdoor unit icing up in winter?
A thin frost that clears within a defrost cycle is normal, even on a humid 40 F Alhambra morning. Worry when the coil stays encased in ice or the unit defrosts every few minutes, which signals a failed defrost board, a bad coil sensor, or low charge. Turn it off if it is a solid block of ice and book a defrost-logic check.
